    BLACK BOX ACS4001A-R2


  • ACS4001A-R2 datasheet PDF

  • NEW & Original
  • Warranty 180days


    • Before payment please contact our sales, we would offer a reasonal price base on the exact qty you need.

    Product Name: Servswitch ™ DVI CATx KVM Extender, Single DVI, USB
    Model: ACS4001A-R2
    Brand: BLACK BOX

    description:

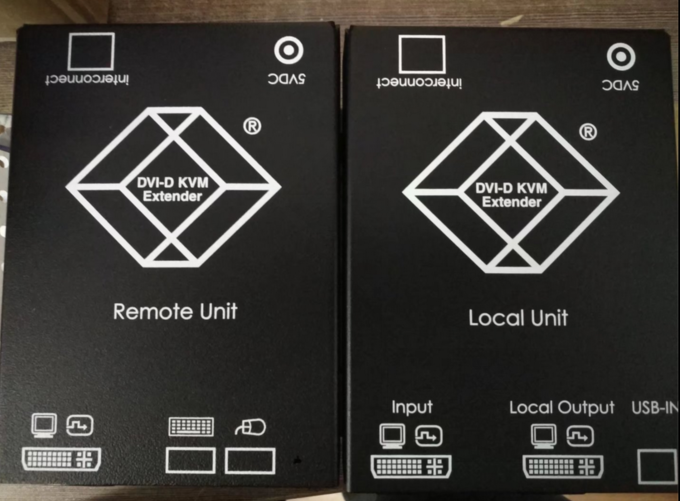

    ServSwitch ™ DVI-D Extender USB HID
    Extend high resolution DVI video plus USB up to 125 meters from your PC
    Superior digital video at 1920 x 1200 over 125-m.
    Options for single / dual & quad video and USB 2.0 peripherals.
    DDC emulation or DDC read from monitor supported.
    Compatible with all O / Ss and many KVM switches.
    19 "rack mount and DIN-rail mounting kits available.
    Warranty - 2 Years.

    specification:
    Maximum Resolution - 1920 x 1200 @ 60 Hz; 1280 x 1024 @ 75Hz; 24 bit color depth
    Maximum Distance - 125m for CAT5, CAT5e CAT6 or CAT7 with AWG24; 60m with AWG26
    Connectors -

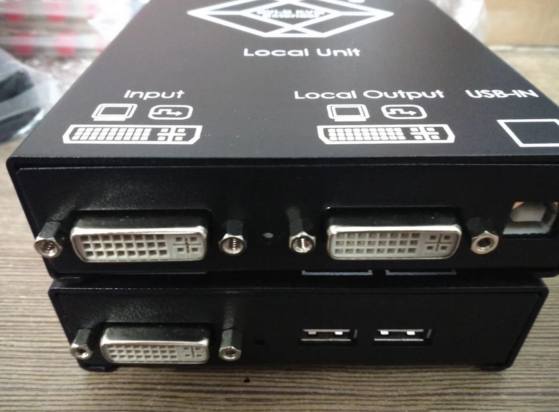

    Local units:
    (2) USB Type B (K / M), (1) RJ-45 (link), (1) barrel (power);
    ACS4022A-R2 same as ACS4001A-R2 but also has (1) DB9 M (RS-232 19.20Kbps, 6 lines), (2) 3.5mm audio jacks;
    (2) USB Type B F (K / M + USB 2.0), (2) RJ-45 (link), (1) barrel (power);
    ACS4222A-R2 like ACS4201A-R2 but also has (1) MiniDIN 8-pin M (RS-232 19.2Kbps, RX / TX / SGnD with no handshake and audio);
    (2) USB Type B F (K / M), (2) RJ-45 (link), (1) barrel (power)
    (4) DVI-I F in, (4) DVI-I F out, (1) USB Type BF (in), (1) MiniDIN8 (RS-232 and audio in), (1) MiniDIN6 (K / M via Y-cable out), (5) RJ-45 (link), (1) IEC320 (power)

    Remote Units:
    (2) USB Type A F HID, (1) RJ-45 (link), (1) barrel (power);
    ACS422A-R2 like ACS4001A-R2 but also has (1) DB9 M (RS-232 up to 19.2Kbps), (2) 3.5mm audio jacks;
    (2) USB Type A F HID, (4) USB Type A F USB 2.0, (2) RJ-45 (link), (1) barrel (power);
    (1) USB Type A F HID, (1) USB Type B F programmable, (1) RJ-45 (link), (1)
    ACS-I F, (2) USB Type A F HID, (2) RJ-45 (link), (1) barrel (power);
    ACS4222A-R2 like ACS4201A-R2 but also has (1) DB9 M (RS-232 19.2Kbps, RX / TX / SgnD with no handshake), (2) 3.5mm audio jacks;
    (1) USB Type A F programmable, (2) RJ-45 (link), (1) barrel (power); (2)
    (2) USB Type AF, (2) MiniDIN6 (K / M), (2) 3.5mm audio jacks, (1) DB9 M (RS-232 / RX / TX / SGnD), (4) LC (link), (1) IEC320;
    (2) USB Type AF (HID), (4) USB Type (USB 2.0), (2) MiniDIN6 (K / M), (2) 3.5mm audio jacks, 1) DB9 M (RS-232 / TX / RX / SGnD), (5) RJ-45 (link), (1) IEC320 (power)
    Power - all ACS40xxA-R2 / ACS42xxA-R2 remote units: 90-240VAC, 47-63Hz, auto sensing, external, with IEC320 connector and cord;
    ACS44x2A-R2 remote and local: 90-240VAC, 47-63Hz, auto sensing, internal
    Dimensions - ACS4001A-R2: 2.9 (H) x 10.3 (W) x 14.3 (D) cm;
    (H) x 10.3 (W) x 14.3 (D) cm; and (c) the same as in the case of the ACS4022A-R2 / ACS4002A-R2 / ACS4004A-R2 / ACS4201A-R2 and ACS4222A-
    ACS44x2A-R2: 4.3 (H) x 41.2 (W) x 14.3 (D) cm
