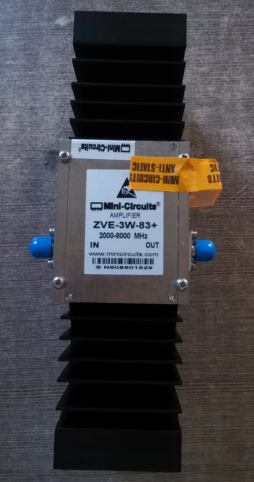

High Power Amplifier ZVE-3W-83+
50Ω 3W 2000 to 8000 MHz
Features
• High power, 3 Watt
• Wideband, 2000 to 8000 MHz
• Low noise figure, 5.8 dB typ.
• High IP3, +42 dBm typ.
• High dynamic range
• High gain, 35 dB typ. and good directivity, 35 dB typ.
• Internal voltage regulated for 13 to 18 VDC
Applications
• Satellite communications
• Line-of-sight transmitters
• Signal generators
• Spread-spectrum communication
Electrical Specifications
|
Parameter |
ZVE-3W-83+ |
ZVE-3W-83X+▲ |
Units |
||||
|
Min. |
Typ. |
Max. |
Min |
Typ. |
Max. |
||
|
Frequency Range |
2000 |
|
8000 |
2000 |
|
8000 |
MHz |
|
Gain |
30 |
|
40 |
30 |
|
40 |
dB |
|
Gain Flatness |
|
±1.15 |
±2.0 |
|
±1.15 |
±2.0 |
dB |
|
Output Power at 1dB compression1 |
+31.5 |
+33 |
|
+31.5 |
+33 |
|
dBm |
|
Saturated Output Power at 3dB compression1 |
+33.5 |
+35 |
|
+33.5 |
+35 |
|
dBm |
|
Noise Figure |
|
5.8 |
|
|
5.8 |
|
dB |
|
Output third order intercept point |
|
+42 |
|
|
+42 |
|
dBm |
|
Input VSWR |
|
1.5 |
|
|
1.5 |
|
:1 |
|
Output VSWR |
|
1.4 |
|
|
1.4 |
|
:1 |
|
DC Supply Voltage |
|
15 |
|
|
15 |
|
V |
|
Supply Current2 |
|
|
1.5 |
|
|
1.5 |
A |
